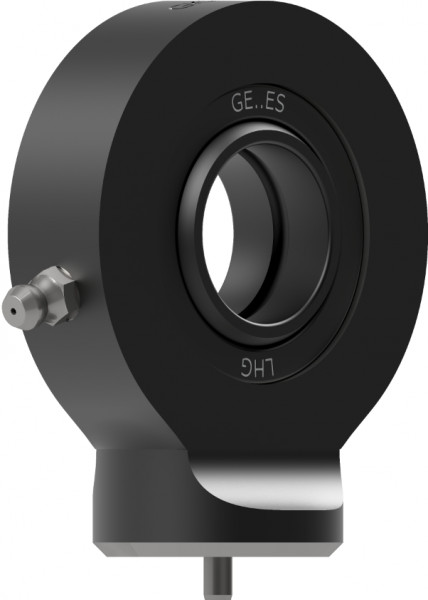

Rod End GF25DO - Maintenance Required - 25/20x18 mm

  • Item number: 70721
  • Brand: GLT
local_shipping
Delivery time unknown.
Choose d (bearing bore)
10 mm
12 mm
15 mm
16 mm
17 mm
20 mm
25 mm
30 mm
35 mm
40 mm
45 mm
50 mm
60 mm
70 mm
80 mm
Choose dimensions
10/9x7.5 mm
12/10x8.5 mm
15/12x10.5 mm
16/14x11.5 mm
17/14x11.5 mm
20/16x13.5 mm
25/20x18 mm
30/22x20 mm
35/25x22 mm
40/28x24 mm
45/32x28 mm
50/35x31 mm
60/44x39 mm
70/49x43 mm
80/55x48 mm
Choose d (bearing bore)
10 mm
12 mm
15 mm
16 mm
17 mm
20 mm
25 mm
30 mm
35 mm
40 mm
45 mm
50 mm
60 mm
70 mm
80 mm
Choose dimensions
10/9x7.5 mm
12/10x8.5 mm
15/12x10.5 mm
16/14x11.5 mm
17/14x11.5 mm
20/16x13.5 mm
25/20x18 mm
30/22x20 mm
35/25x22 mm
40/28x24 mm
45/32x28 mm
50/35x31 mm
60/44x39 mm
70/49x43 mm
80/55x48 mm
Delivery time or price unknown. Request a quote for price and delivery time.
Quick navigation:
Product description
Specifications
Specifications
Article number 70721
EAN 04062011326858
B (Inner ring width)20 mm
d (Bearing bore)25 mm
Dimensions25/20x18 mm
Maintenance requiredmaintenance required
Materialsteel
Material technicalSteel St 52-3 + Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatized
Model 2GELENKKOPF
NormDIN ISO 12240-4, series E
Temperatur range-60°C up to + 150 °C
TypeGK-SW
Also found under
Rod Ends
download Download/print specifications PDF
Rod End GF25DO - Maintenance Required - 25/20x18 mm
Product description

Rod End GF25DO - Maintenance Required - 25/20x18 mm,/h2>
Rod end requiring maintenance GK..DO (SC..ES) with weld-on end and with centring pin according to DIN ISO 12240-4, dimension series E. The sliding pair is made of steel/steel. It can be relubricated via the rod end or via the shaft.
Up to a shaft diameter of 12 mm, relubrication must be carried out via the shaft. From 12 mm to 20 mm, relubrication is possible via the lubrication hole.
