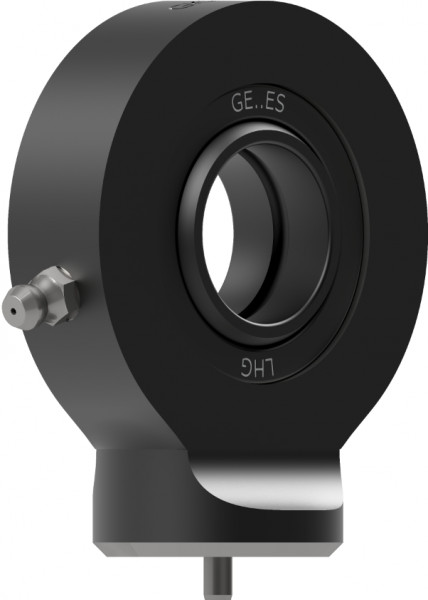

Rod End GF35DO - Maintenance Required - 35/25x22 mm

  • Article number: 70723
  • Brand: GLT
local_shipping Delivery in 3-5 days
Choose d (bearing bore)
10
12
15
16
17
20
25
30
35
40
45
50
60
70
80
Choose dimensions
10/9x7.5 mm
12/10x8.5 mm
15/12x10.5 mm
16/14x11.5 mm
17/14x11.5 mm
20/16x13.5 mm
25/20x18 mm
30/22x20 mm
35/25x22 mm
40/28x24 mm
45/32x28 mm
50/35x31 mm
60/44x39 mm
70/49x43 mm
80/55x48 mm
€ 17,06 incl. VAT
€ 17,06 excl. VAT
Choose d (bearing bore)
10
12
15
16
17
20
25
30
35
40
45
50
60
70
80
Choose dimensions
10/9x7.5 mm
12/10x8.5 mm
15/12x10.5 mm
16/14x11.5 mm
17/14x11.5 mm
20/16x13.5 mm
25/20x18 mm
30/22x20 mm
35/25x22 mm
40/28x24 mm
45/32x28 mm
50/35x31 mm
60/44x39 mm
70/49x43 mm
80/55x48 mm
€ 17,06 incl. VAT
€ 17,06 excl. VAT
check 25 years experience
check Customer rating 8,9/10
More than 15 pcs? Click here for a quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Specifications
In stock Yes, 115 pcs
Article number 70723
EAN 04062011084505
d (Bearing bore)35 mm
B (Inner ring width)25 mm
Dimensions35/25x22 mm
Maintenance requiredmaintenance required
Materialsteel
Material technicalSteel St 52-3 + Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatized
Model 2GELENKKOPF
NormDIN ISO 12240-4, series E
Temperatur range-60°C up to + 150 °C
TypeGK-SW
Rod End GF35DO - Maintenance Required - 35/25x22 mm
Product description

Rod End GF35DO - Maintenance Required - 35/25x22 mm,/h2>
Rod end requiring maintenance GK..DO (SC..ES) with weld-on end and with centring pin according to DIN ISO 12240-4, dimension series E. The sliding pair is made of steel/steel. It can be relubricated via the rod end or via the shaft.
Up to a shaft diameter of 12 mm, relubrication must be carried out via the shaft. From 12 mm to 20 mm, relubrication is possible via the lubrication hole.
