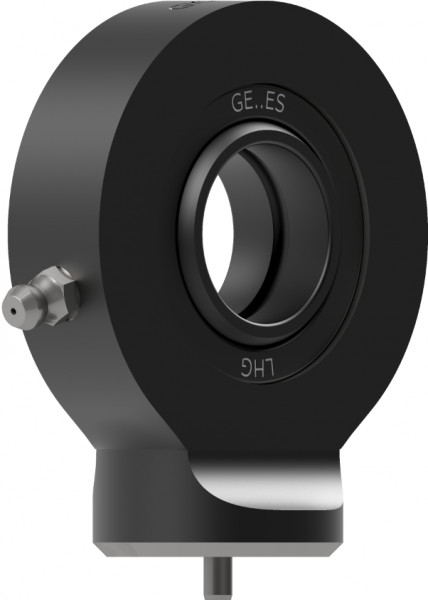

Rod End GF30DO - Maintenance Required - 30/22x20 mm

  • Item number: 70722
  • Brand: GLT
local_shipping Shipped in 3 - 4 - Day(s)
Choose d (bearing bore)
10 mm
12 mm
15 mm
16 mm
17 mm
20 mm
25 mm
30 mm
35 mm
40 mm
45 mm
50 mm
60 mm
70 mm
80 mm
Choose dimensions
10/9x7.5 mm
12/10x8.5 mm
15/12x10.5 mm
16/14x11.5 mm
17/14x11.5 mm
20/16x13.5 mm
25/20x18 mm
30/22x20 mm
35/25x22 mm
40/28x24 mm
45/32x28 mm
50/35x31 mm
60/44x39 mm
70/49x43 mm
80/55x48 mm
€ 11,48 incl. VAT
€ 11,48 excl. VAT
Choose d (bearing bore)
10 mm
12 mm
15 mm
16 mm
17 mm
20 mm
25 mm
30 mm
35 mm
40 mm
45 mm
50 mm
60 mm
70 mm
80 mm
Choose dimensions
10/9x7.5 mm
12/10x8.5 mm
15/12x10.5 mm
16/14x11.5 mm
17/14x11.5 mm
20/16x13.5 mm
25/20x18 mm
30/22x20 mm
35/25x22 mm
40/28x24 mm
45/32x28 mm
50/35x31 mm
60/44x39 mm
70/49x43 mm
80/55x48 mm
€ 11,48 incl. VAT
€ 11,48 excl. VAT
check25 years of experience
check Customer review 9,2/10
More than 25 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Often bought together
Cellasto Seal ring CD 30 GE
€ 14,04
Cellasto Seal ring CD 30 GE
€ 14,04
Quick navigation:
Product description
Specifications
Specifications
In stock Yes, 521 pcs
Article number 70722
EAN 04062011084475
B (Inner ring width)22 mm
d (Bearing bore)30 mm
Dimensions30/22x20 mm
Maintenance requiredmaintenance required
Materialsteel
Material technicalSteel St 52-3 + Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatized
Model 2GELENKKOPF
NormDIN ISO 12240-4, series E
Temperatur range-60°C up to + 150 °C
TypeGK-SW
Also found under
Rod Ends
download Download/print specifications PDF
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Product description

Rod End GF30DO - Maintenance Required - 30/22x20 mm,/h2>
Rod end requiring maintenance GK..DO (SC..ES) with weld-on end and with centring pin according to DIN ISO 12240-4, dimension series E. The sliding pair is made of steel/steel. It can be relubricated via the rod end or via the shaft.
Up to a shaft diameter of 12 mm, relubrication must be carried out via the shaft. From 12 mm to 20 mm, relubrication is possible via the lubrication hole.
€ 11,48 incl. VAT
€ 11,48 excl. VAT
€ 11,48 incl. VAT
€ 11,48 excl. VAT
More than 25 pieces? Click here for quote

Similar products
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS10C - GK10DO - SC10ES-10 x 9 x 24
€ 9,67
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS12C - GK12DO - SC12ES-12 x 10 x 27
€ 9,86
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS15C - GK15DO - SC15ES-15 x 12 x 31
€ 10,99
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS16C - GK16DO - SC16ES-16 x 14 x 35
€ 11,58
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS17C - GK17DO - SC17ES-17 x 14 x 35
€ 11,58
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS20C - GK20DO - SC20ES-20 x 16 x 38
€ 12,75
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS25C - GK25DO - SC25ES-25 x 20 x 45
€ 16,82
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS30C - GK30DO - SC30ES-30 x 22 x 51
€ 18,63
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS35C - GK35DO - SC35ES-35 x 25 x 61
€ 22,71
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS40C - GK40DO - SC40ES-40 x 28 x 69
€ 30,18
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS45C - GK45DO - SC45ES-45 x 32 x 77
€ 37,53
Rod End GF30DO - Maintenance Required - 30/22x20 mm
Rod End WS50C - GK50DO - SC50ES-50 x 35 x 88
€ 48,21
