home navigate_next Spherical Bearing GEH110COMP-P - 110 x 160 x 74 x 78mm

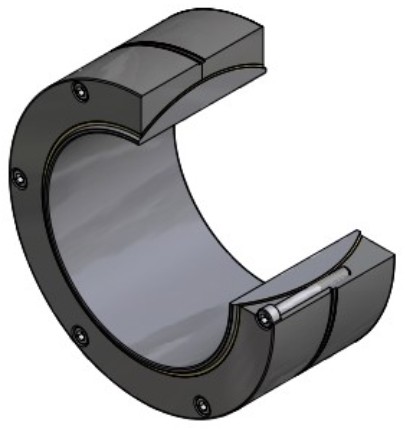

Spherical Bearing GEH110COMP-P - 110 x 160 x 74 x 78mm

Spherical Bearing GEH110COMP-P - 110 x 160 x 74 x 78mm
Choose d (bearing bore)
100 mm
110 mm
120 mm
140 mm
160 mm
180 mm
200 mm
220 mm
240 mm
260 mm
280 mm
300 mm
320 mm
340 mm
360 mm
380 mm
400 mm
420 mm
440 mm
460 mm
480 mm
500 mm
530 mm
560 mm
600 mm
630 mm
670 mm
710 mm
750 mm
800 mm
850 mm
900 mm
950 mm
1000 mm
Choose dimensions
100 x 150 x 67 x 71 mm
110 x 160 x 74 x 78 mm
120 x 180 x 80 x 85 mm
140 x 210 x 95 x 100 mm
160 x 230 x 109 x 115 mm
180 x 260 x 122 x 128 mm
200 x 290 x 134 x 140 mm
220 x 320 x 148 x 155 mm
240 x 340 x 162 x 170 mm
260 x 370 x 175 x 185 mm
280 x 400 x 190 x 200 mm
300 x 430 x 200 x 212 mm
320 x 460 x 218 x 230 mm
340 x 480 x 230 x 243 mm
360 x 520 x 243 x 258 mm
380 x 540 x 258 x 272 mm
400 x 580 x 265 x 280 mm
420 x 600 x 280 x 300 mm
440 x 630 x 300 x 315 mm
460 x 650 x 308 x 325 mm
480 x 680 x 320 x 340 mm
500 x 710 x 335 x 355 mm
530 x 750 x 355 x 375 mm
560 x 800 x 380 x 400 mm
600 x 850 x 400 x 425 mm
630 x 900 x 425 x 450 mm
670 x 950 x 450 x 475 mm
710 x 1000 x 475 x 500 mm
750 x 1060 x 500 x 530 mm
800 x 1120 x 530 x 565 mm
850 x 1220 x 565 x 600 mm
900 x 1250 x 600 x 635 mm
950 x 1360 x 635 x 670 mm
1000 x 1450 x 670 x 710 mm
Choose d (bearing bore)
100 mm
110 mm
120 mm
140 mm
160 mm
180 mm
200 mm
220 mm
240 mm
260 mm
280 mm
300 mm
320 mm
340 mm
360 mm
380 mm
400 mm
420 mm
440 mm
460 mm
480 mm
500 mm
530 mm
560 mm
600 mm
630 mm
670 mm
710 mm
750 mm
800 mm
850 mm
900 mm
950 mm
1000 mm
Choose dimensions
100 x 150 x 67 x 71 mm
110 x 160 x 74 x 78 mm
120 x 180 x 80 x 85 mm
140 x 210 x 95 x 100 mm
160 x 230 x 109 x 115 mm
180 x 260 x 122 x 128 mm
200 x 290 x 134 x 140 mm
220 x 320 x 148 x 155 mm
240 x 340 x 162 x 170 mm
260 x 370 x 175 x 185 mm
280 x 400 x 190 x 200 mm
300 x 430 x 200 x 212 mm
320 x 460 x 218 x 230 mm
340 x 480 x 230 x 243 mm
360 x 520 x 243 x 258 mm
380 x 540 x 258 x 272 mm
400 x 580 x 265 x 280 mm
420 x 600 x 280 x 300 mm
440 x 630 x 300 x 315 mm
460 x 650 x 308 x 325 mm
480 x 680 x 320 x 340 mm
500 x 710 x 335 x 355 mm
530 x 750 x 355 x 375 mm
560 x 800 x 380 x 400 mm
600 x 850 x 400 x 425 mm
630 x 900 x 425 x 450 mm
670 x 950 x 450 x 475 mm
710 x 1000 x 475 x 500 mm
750 x 1060 x 500 x 530 mm
800 x 1120 x 530 x 565 mm
850 x 1220 x 565 x 600 mm
900 x 1250 x 600 x 635 mm
950 x 1360 x 635 x 670 mm
1000 x 1450 x 670 x 710 mm
Delivery time and price unknown. Request a quote for price and delivery time.
Specifications
Article number GEH110COMP-P
B (Inner ring width)78 mm
Basic load ratings dynamic925 kN
Basic load ratings statisch1625 kN
C (Width of outer ring)74 mm
CN Radial internal clearance0,085 - 0,165 mm
ColorMetaal
d (Bearing bore)110 mm
D (Outer diameter outer ring)160 mm
MaterialSS / hardweefsel composiet
ModelGewrichtslager radiaal onderhoudsvrij
NormDIN ISO 12 240-1 H
SealsNo
Tilting angle2 α° ≈
Dimensions110 x 160 x 74 x 78 mm
Dimensions and weight
Weight5.35 Kg
Dimension110 x 160 x 74 x 78 mm
Also found under
Radial Spherical Plain Bearings
download Download/print specifications PDF
Product description
Spherical Bearing GEH110COMP-P - 110 x 160 x 74 x 78mm
De GEH110COMP-P - 110 x 160 x 74 x 78 mm is een onderhoudsvrij gewrichtslager.
