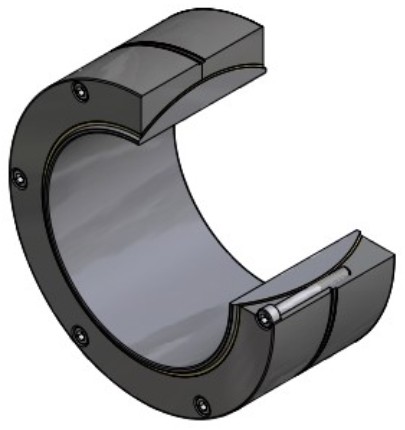

Spherical Bearing GEH160COMP-P - 160 x 230 x 109 x 115mm

Spherical Bearing GEH160COMP-P - 160 x 230 x 109 x 115mm
Delivery time and price unknown. Request a quote for price and delivery time.
Specifications
Article number GEH160COMP-P
B (Inner ring width)115 mm
Basic load ratings dynamic1944 kN
Basic load ratings statisch3416 kN
C (Width of outer ring)109 mm
CN Radial internal clearance0,100 - 0,192 mm
ColorMetaal
d (Bearing bore)160 mm
D (Outer diameter outer ring)230 mm
MaterialSS / hardweefsel composiet
ModelGewrichtslager radiaal onderhoudsvrij
NormDIN ISO 12 240-1 H
SealsNo
Tilting angle2 α° ≈
Dimensions160 x 230 x 109 x 115 mm
Dimensions and weight
Weight16.60 Kg
Dimension160 x 230 x 109 x 115 mm
Also found under
Radial Spherical Plain Bearings
download Download/print specifications PDF
Product description
Spherical Bearing GEH160COMP-P - 160 x 230 x 109 x 115mm
De GEH160COMP-P - 160 x 230 x 109 x 115 mm is een onderhoudsvrij gewrichtslager.
Delivery time and price unknown. Request a quote for price and delivery time.
