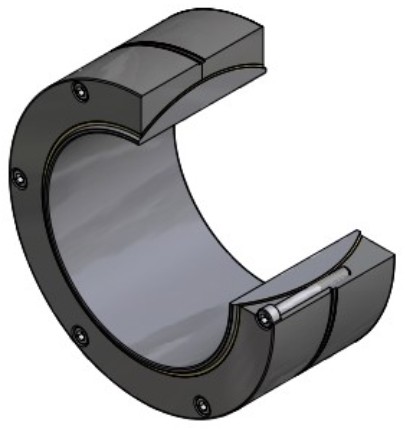

Spherical Bearing GEH480COMP-P - 480 x 680 x 320 x 340mm

Spherical Bearing GEH480COMP-P - 480 x 680 x 320 x 340mm
Delivery time and price unknown. Request a quote for price and delivery time.
Specifications
Article number GEH480COMP-P
B (Inner ring width)340 mm
Basic load ratings dynamic16818 kN
Basic load ratings statisch29546 kN
C (Width of outer ring)320 mm
CN Radial internal clearance0,145 - 0,285 mm
ColorMetaal
d (Bearing bore)480 mm
D (Outer diameter outer ring)680 mm
MaterialSS / hardweefsel composiet
ModelGewrichtslager radiaal onderhoudsvrij
NormDIN ISO 12 240-1 H
SealsNo
Tilting angle2 α° ≈
Dimensions480 x 680 x 320 x 340 mm
Dimensions and weight
Weight435.00 Kg
Dimension480 x 680 x 320 x 340 mm
Also found under
Radial Spherical Plain Bearings
download Download/print specifications PDF
Product description
Spherical Bearing GEH480COMP-P - 480 x 680 x 320 x 340mm
De GEH480COMP-P - 480 x 680 x 320 x 340 mm is een onderhoudsvrij gewrichtslager.
Delivery time and price unknown. Request a quote for price and delivery time.
